Scheduled Synchronization

In HAP integration center, it allows data synchronization at scheduled intervals or specific times. Users can configure whether to fully overwrite data or only add/modify data based on specified fields during synchronization.

Currently, only SAP HANA data sources support scheduled synchronization, while other data sources only support real-time synchronization.

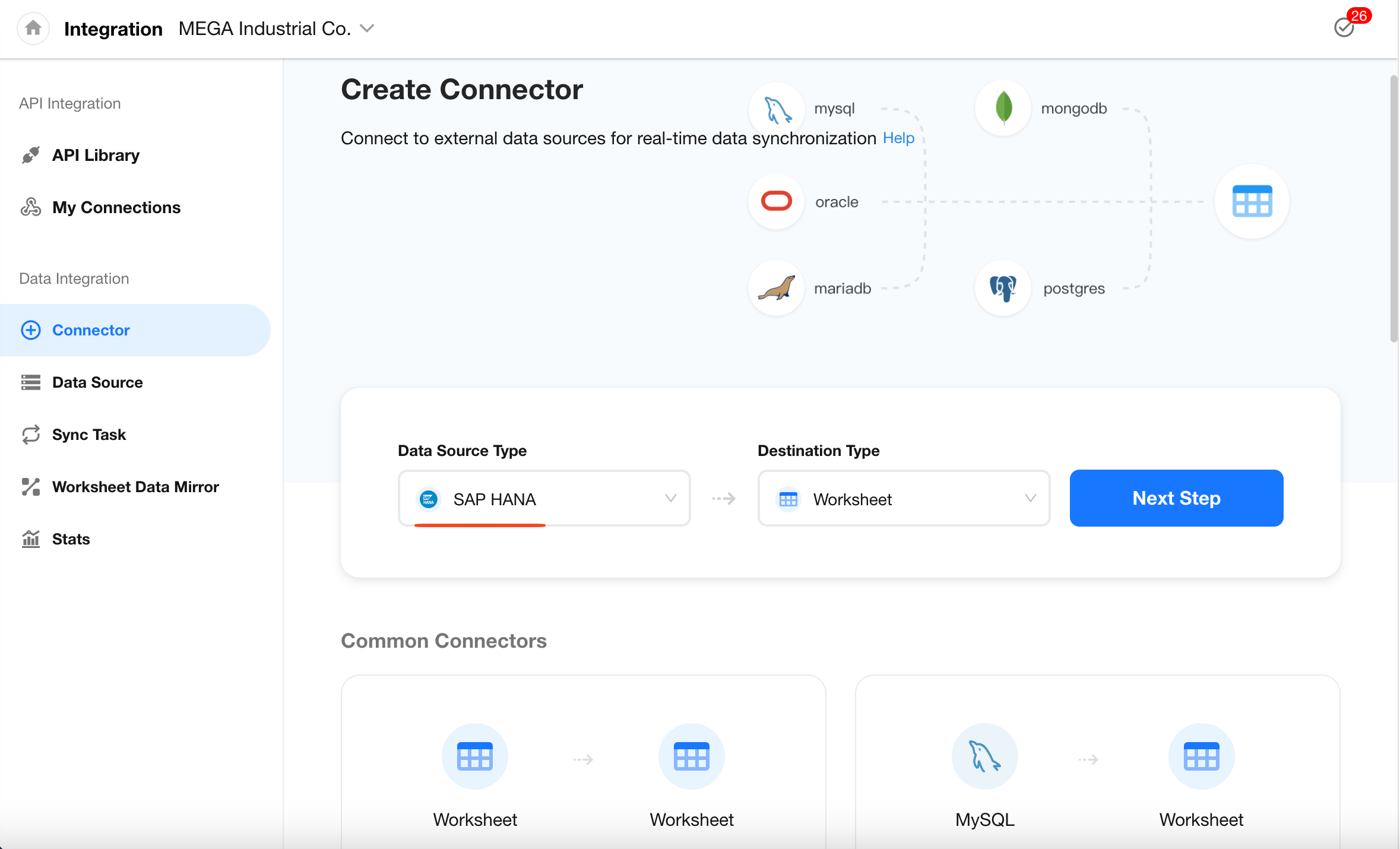

1. Create connection​

Select SAP HANA as data source, choose the target data source type, then click Next.

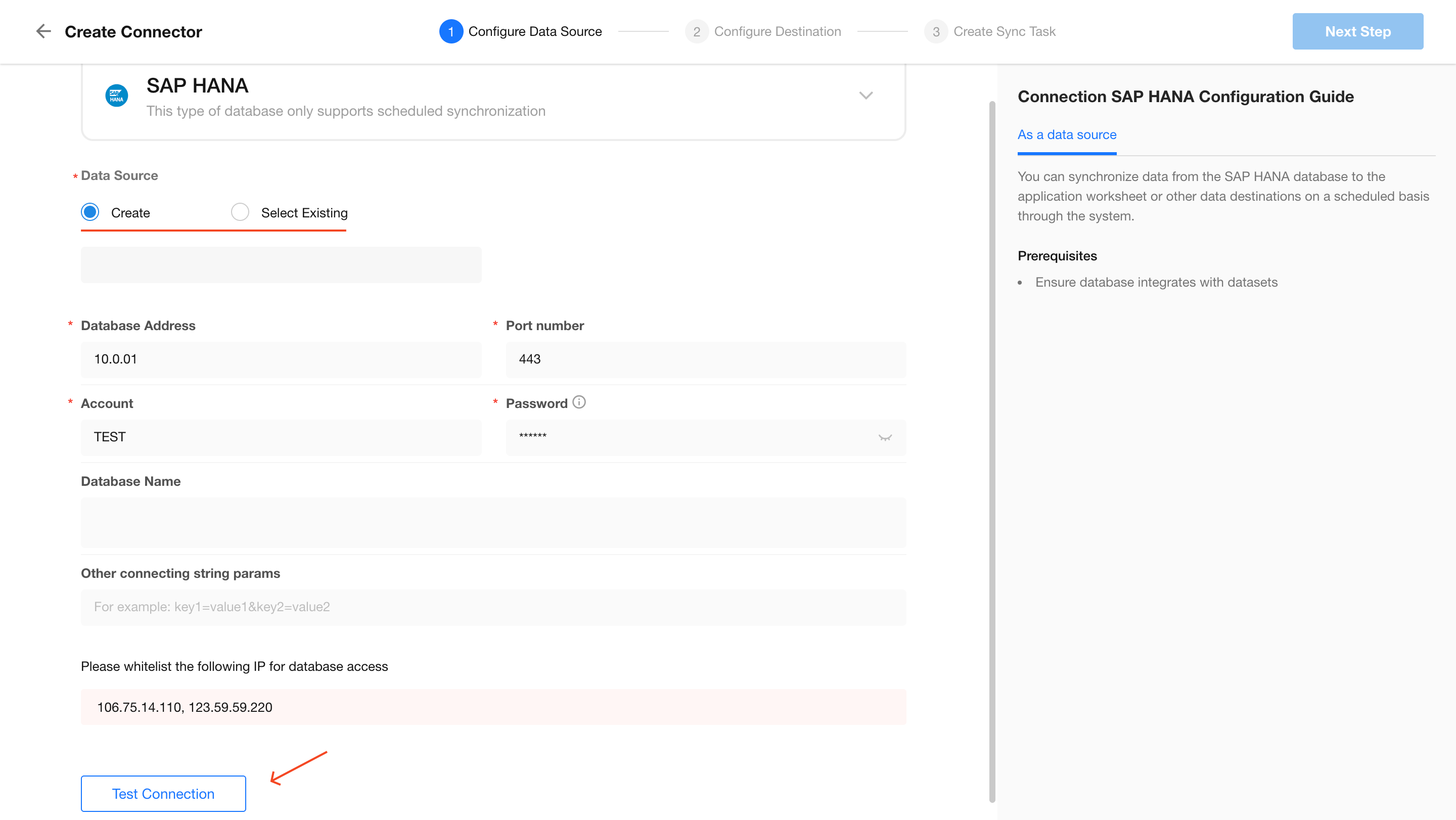

2. Select or create data source​

Create a new data source or select an existing one. Click "Test Connection", and once the connection is successful, click Next.

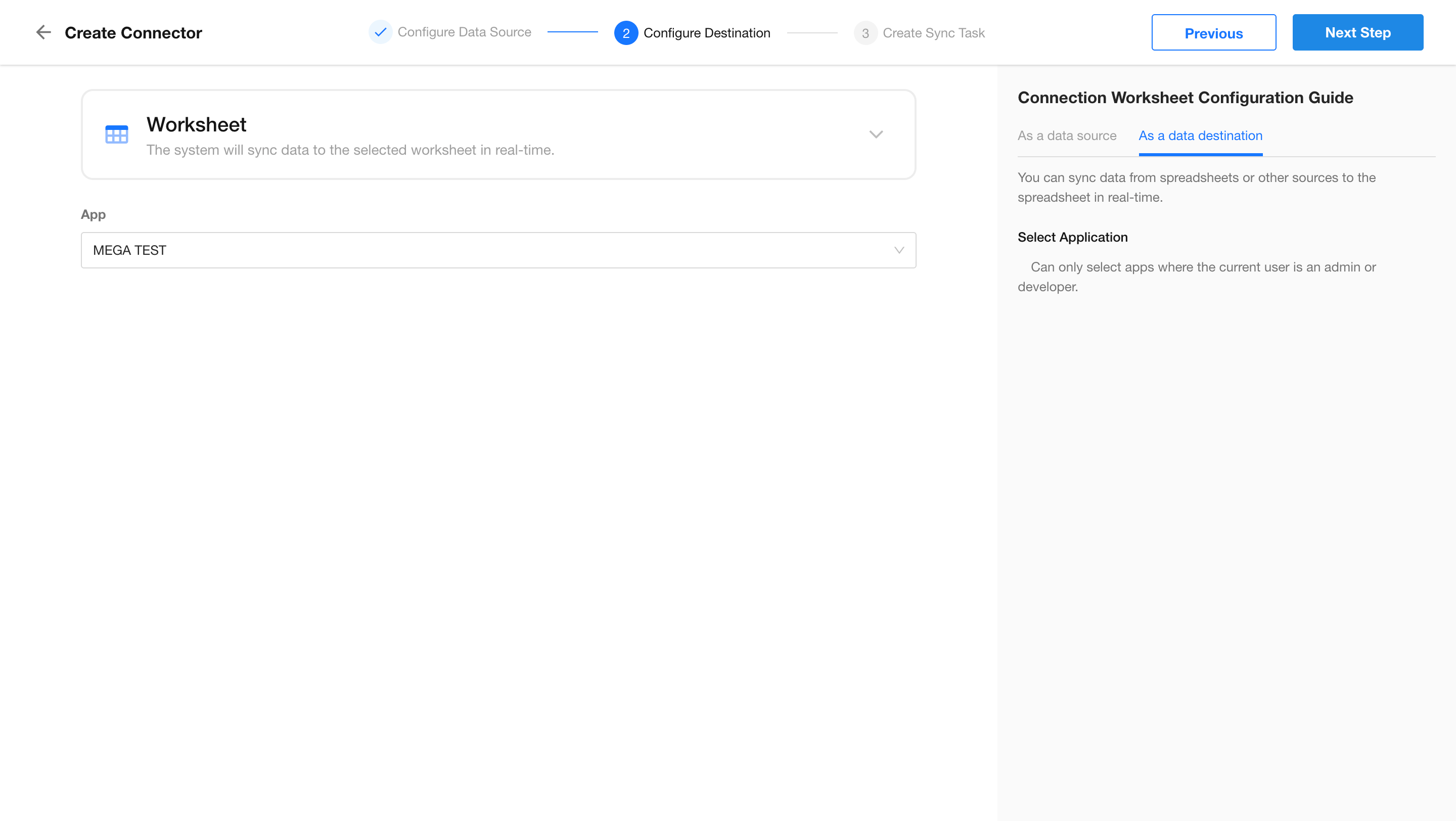

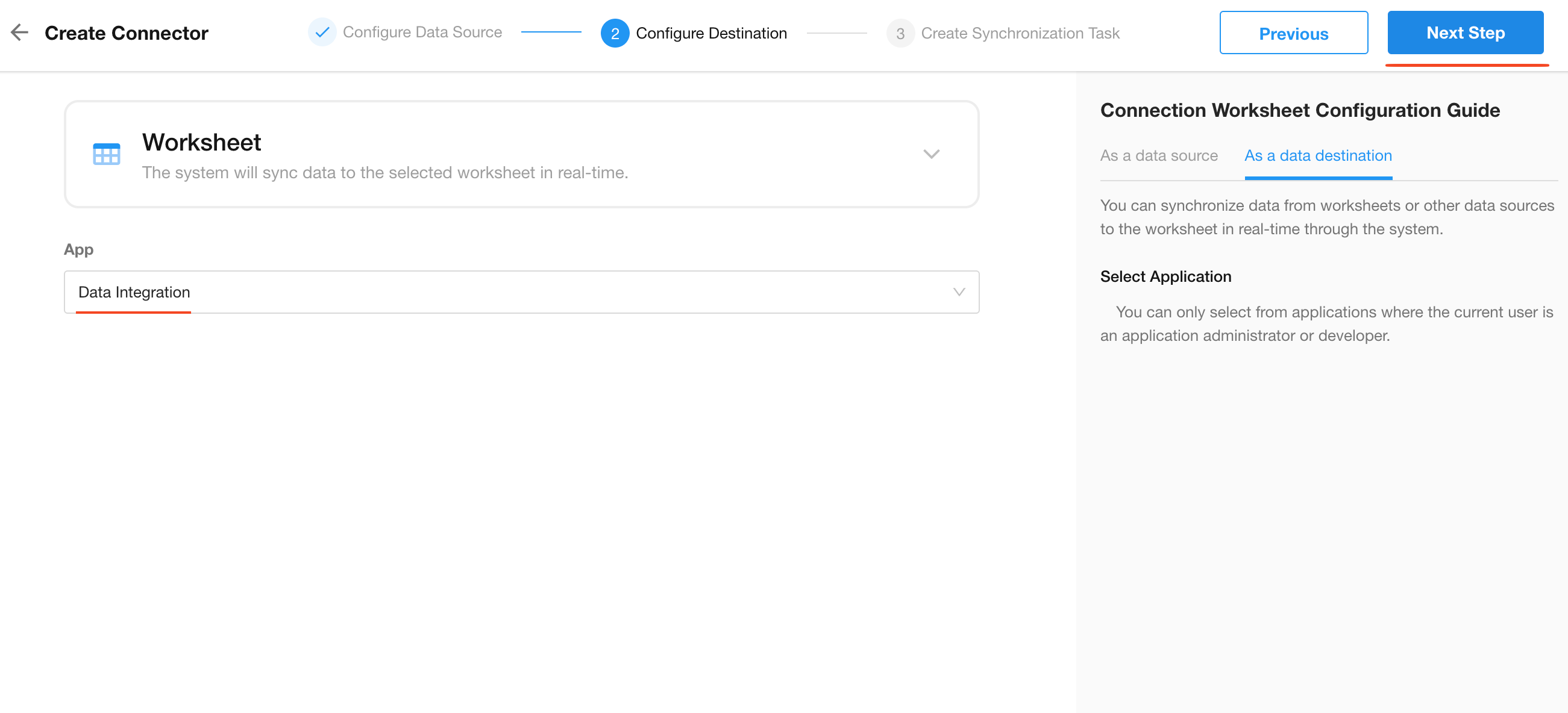

3. Select destination database​

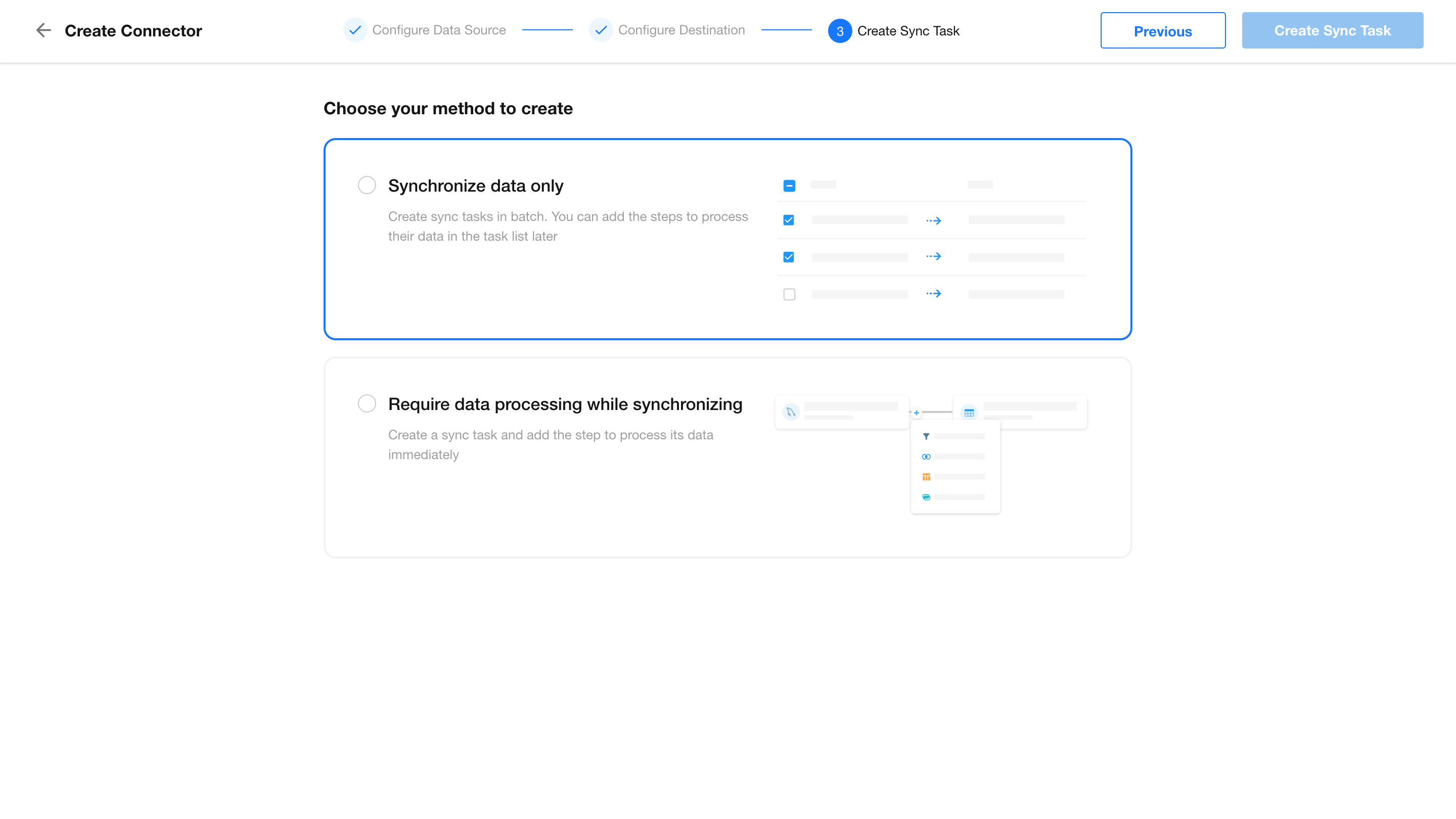

4. Choose synchronization method​

Example: Select "synchronize data only"

5. Select the database and data object to synchronize​

6. Set up scheduled synchronization task​

  • Data read interval: Set to synchronize hourly or at a specific time every day.

  • Data reading method

    • Read all data each time

      Precondition: The table must include a primary key and will read complete data from the source, overwriting into the destination.

    • Read only new or modified data each time

      Precondition: The source table must contain any of the primary key, date/time stamp, or numeric field.

      • Matching field

        Select a field as the filtering field for each modification. The data source's primary key, date/time stamp, and numeric field will be shown as dropdown options.

        Primary key/numeric: For example, if the last sync range was 1 to 100, the next sync will start from over 100.

        Date/time stamp: For example, if the last sync was until June 14, 2024, at 00:29:49, the next sync will start from this time onward.

        First read start value: Based on the selected filtering field, the minimum value from the database records will be read.

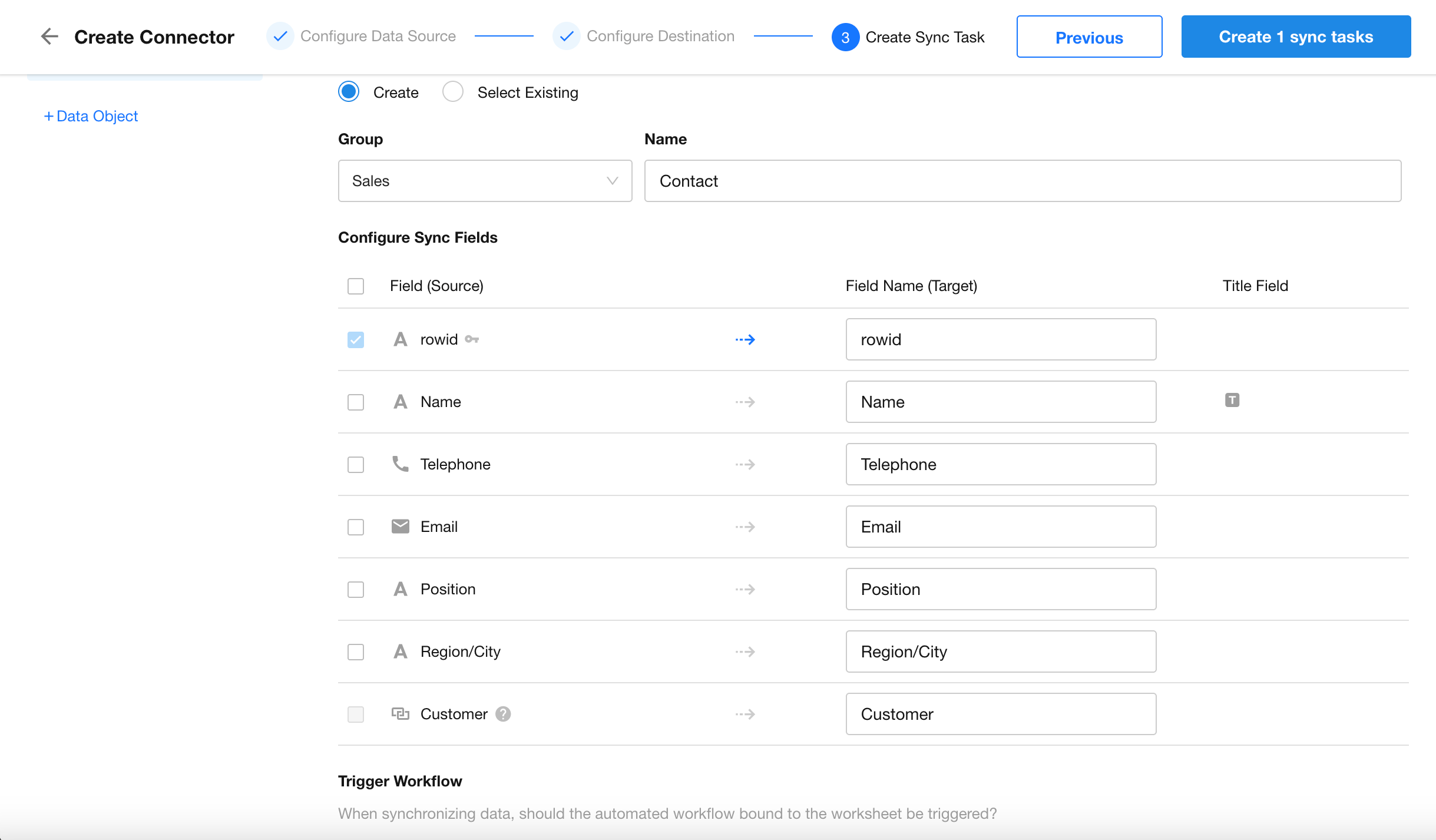

7. Set up synchronization fields​

Configure the synchronization fields and other settings, then click to create the synchronization task.
