Workflow Trigger Information

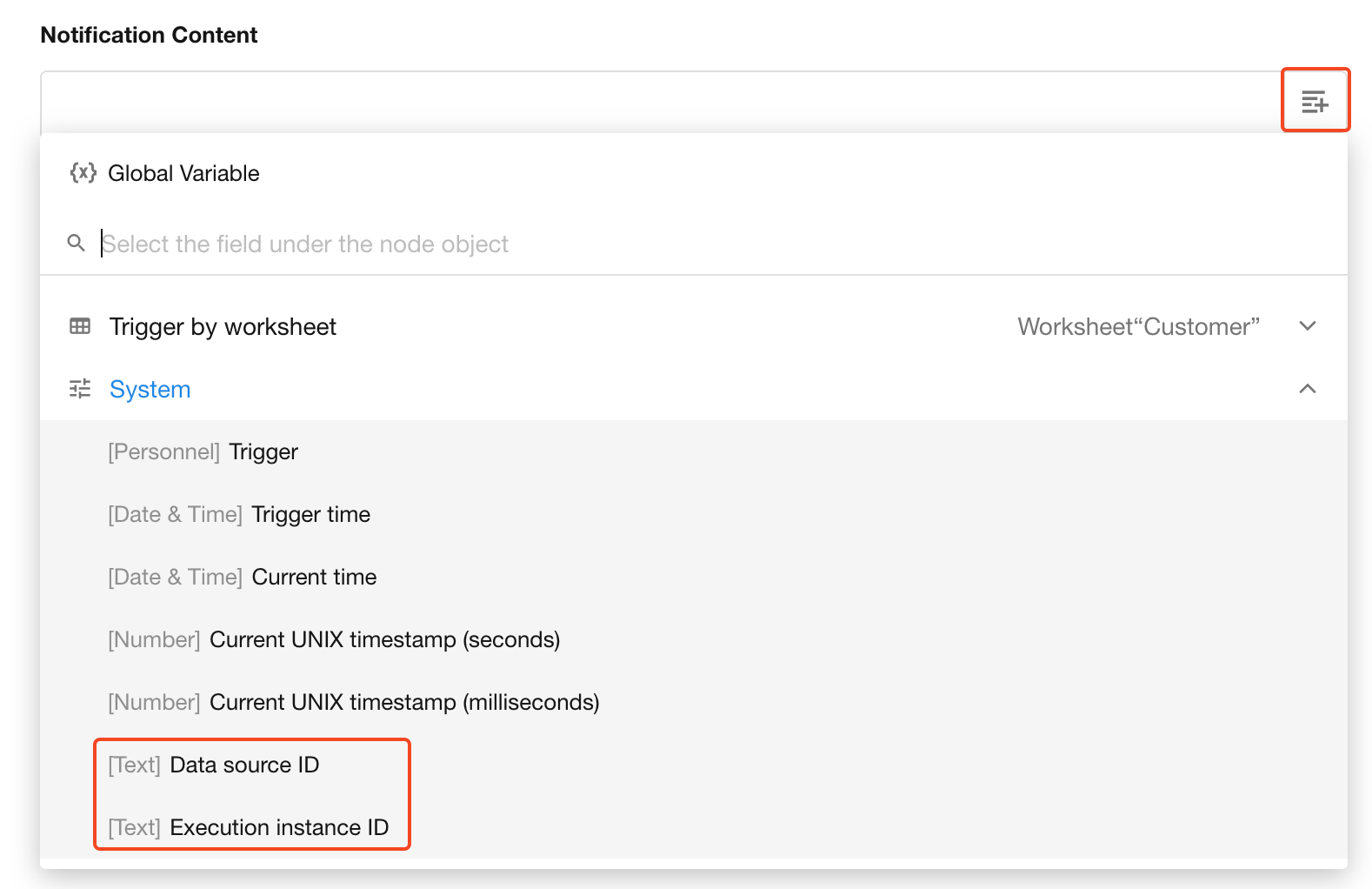

You may need to identify which record triggered a workflow instance, when it was triggered, and who triggered it. This information can be obtained from the Data Source ID and Execution Instance ID available in workflow nodes.

Data Source ID​

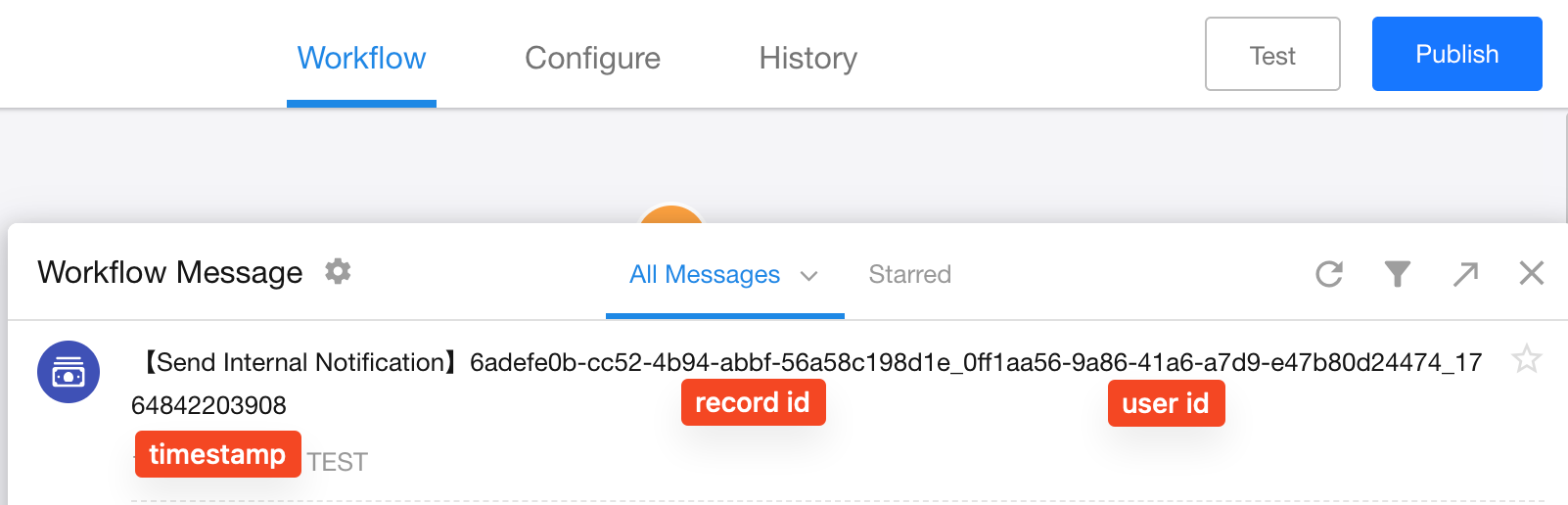

The Data Source ID contains three pieces of information in the following order: the ID of the record that triggered the workflow, the triggering user's ID, and the trigger timestamp.

tip

Not all workflow instances include all three pieces of information. For example, scheduled workflows are triggered independently of records, so their Data Source IDs contain only the user ID and timestamp, without a record ID.

  • Triggering Record ID

    The ID (rowid) of the record that triggered the workflow. See How to Find a Record ID.

  • Triggering User ID

    The ID of the user who triggered the workflow. For example, if a user creates a record that triggers a workflow, the triggering user ID is that user's ID in the system.

    Organization administrators can export the organization member list from the admin console. The exported Excel file includes a User ID column.

    If a workflow is triggered by a record created or updated through an API, another workflow, or a public form, the corresponding triggering user IDs are user-api, user-workflow, and user-publicform, respectively.

  • Trigger Timestamp

    The timestamp indicating when the current workflow instance was triggered.

Execution Instance ID​

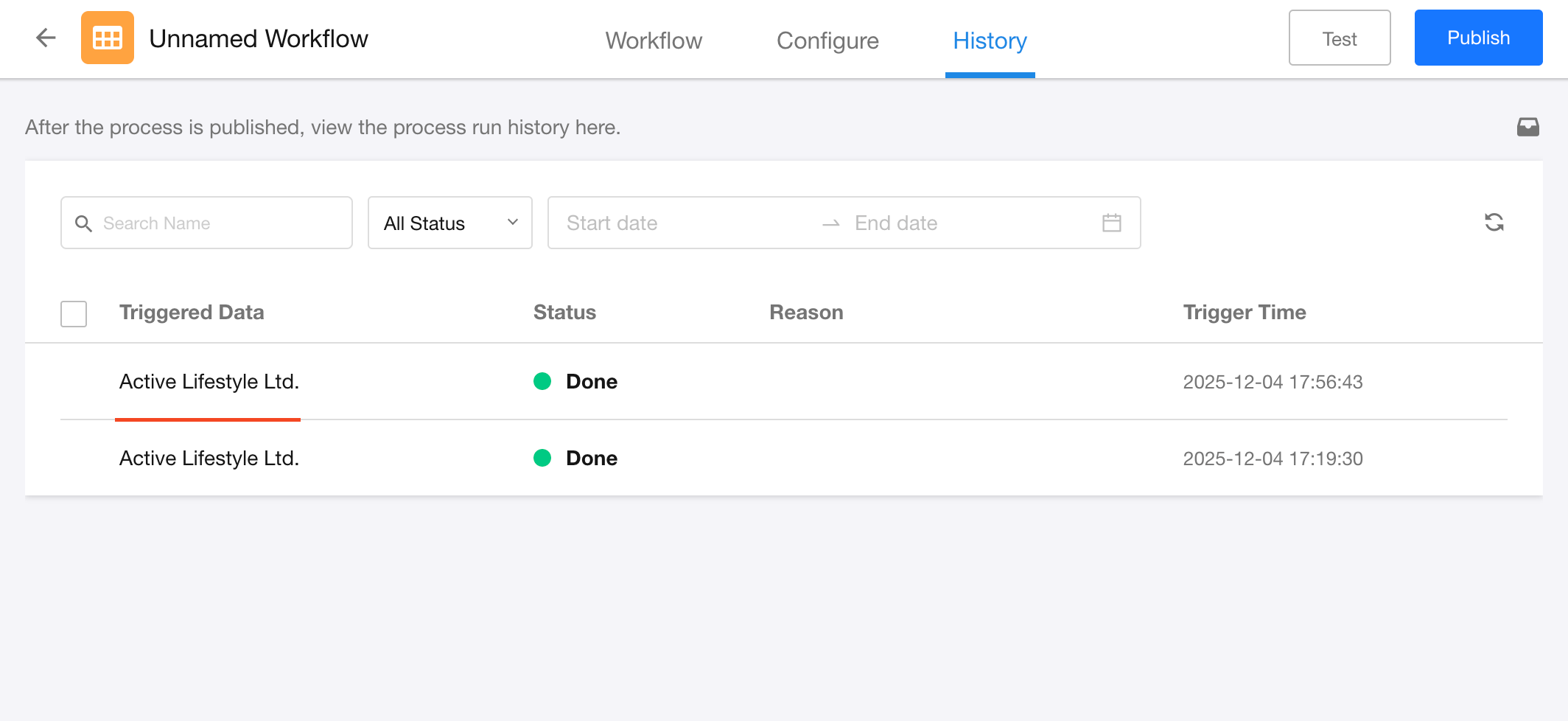

As shown below, each row represents a workflow execution instance. Each instance has a unique ID that can be used to view its execution details.

An Execution Instance ID is a string of characters, such as 62c7ff5837a28b63af673b05.

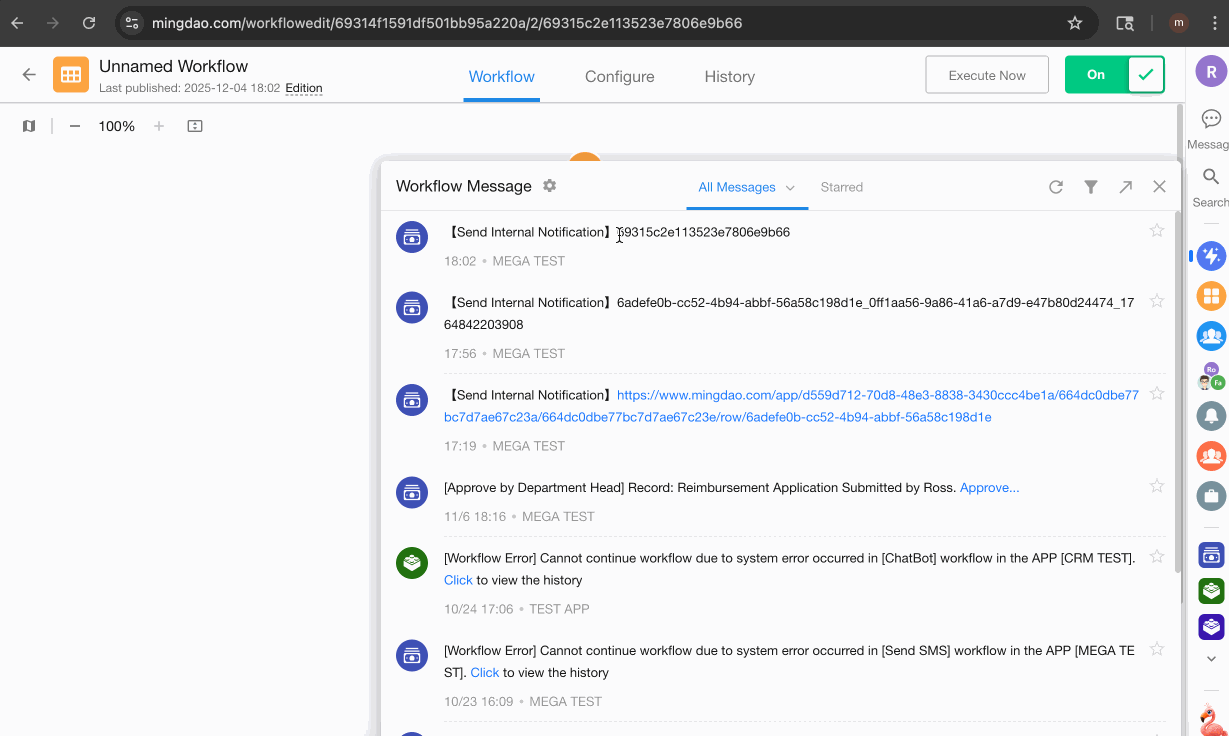

To view the execution details for a specific instance:

  1. Open the workflow configuration page.
  2. Append /2/InstanceID to the URL in the browser's address bar, replacing InstanceID with the actual execution instance ID.
  3. Press Enter to open the execution details for that instance.
