Hide UI Areas in Applications

---

When integrating with external systems, you may need to embed an application within another platform. In such cases, only a specific worksheet or page may be required, while other elements (such as worksheet navigation or message panels) become unnecessary.

To support this scenario, HAP provides a UI area hiding feature. It allows you to hide specific sections of the page by passing parameters in the URL.

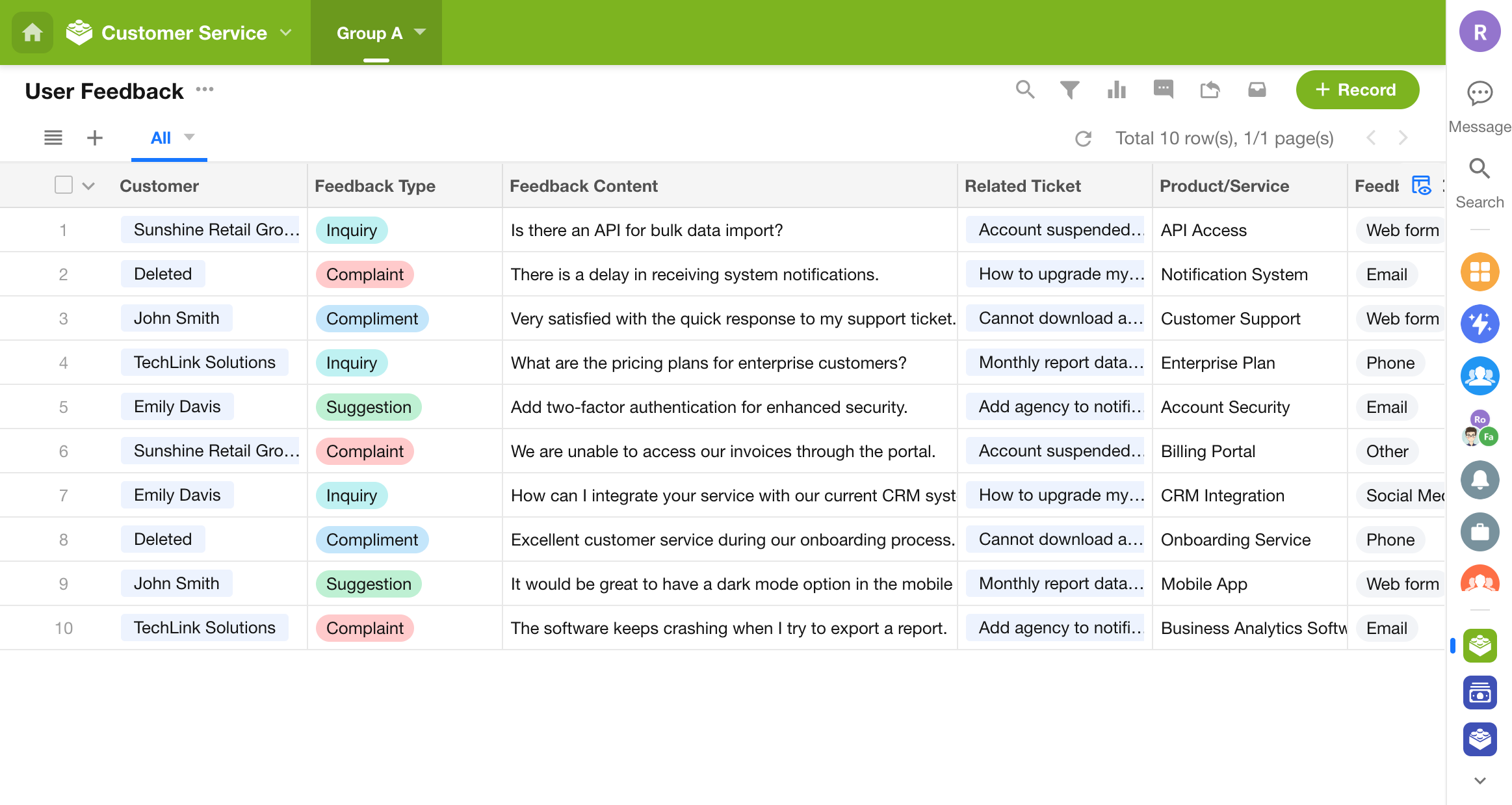

As shown below, all unnecessary UI areas are hidden, leaving only the central data area. This results in a clean layout suitable for embedding into external systems.

1. UI Areas and Parameters

UI Area	Parameter	Hide Value
Top-left “Back to Home”	s	no
Top center group bar	tb	no
Top-right action buttons	tr	no
To-do	td	no
Account avatar	ac	no
Left worksheet navigation	ln	no
Right message panel	rp	no
Chat entry	ch	no

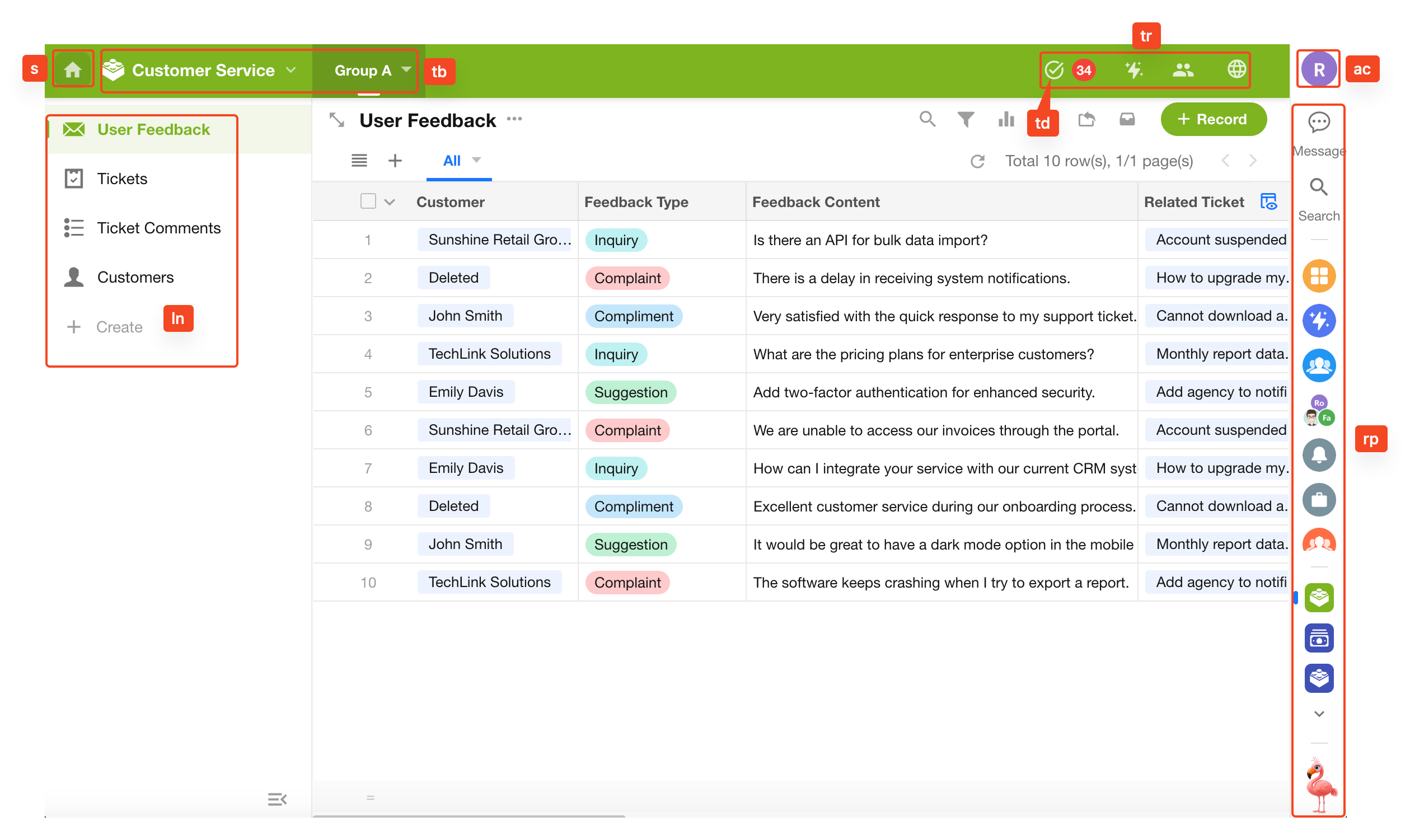

UI reference:

2. URL Parameter Configuration Example

2.1 Get the Page URL

For example, to embed the User Feedback worksheet from a Customer Service application:

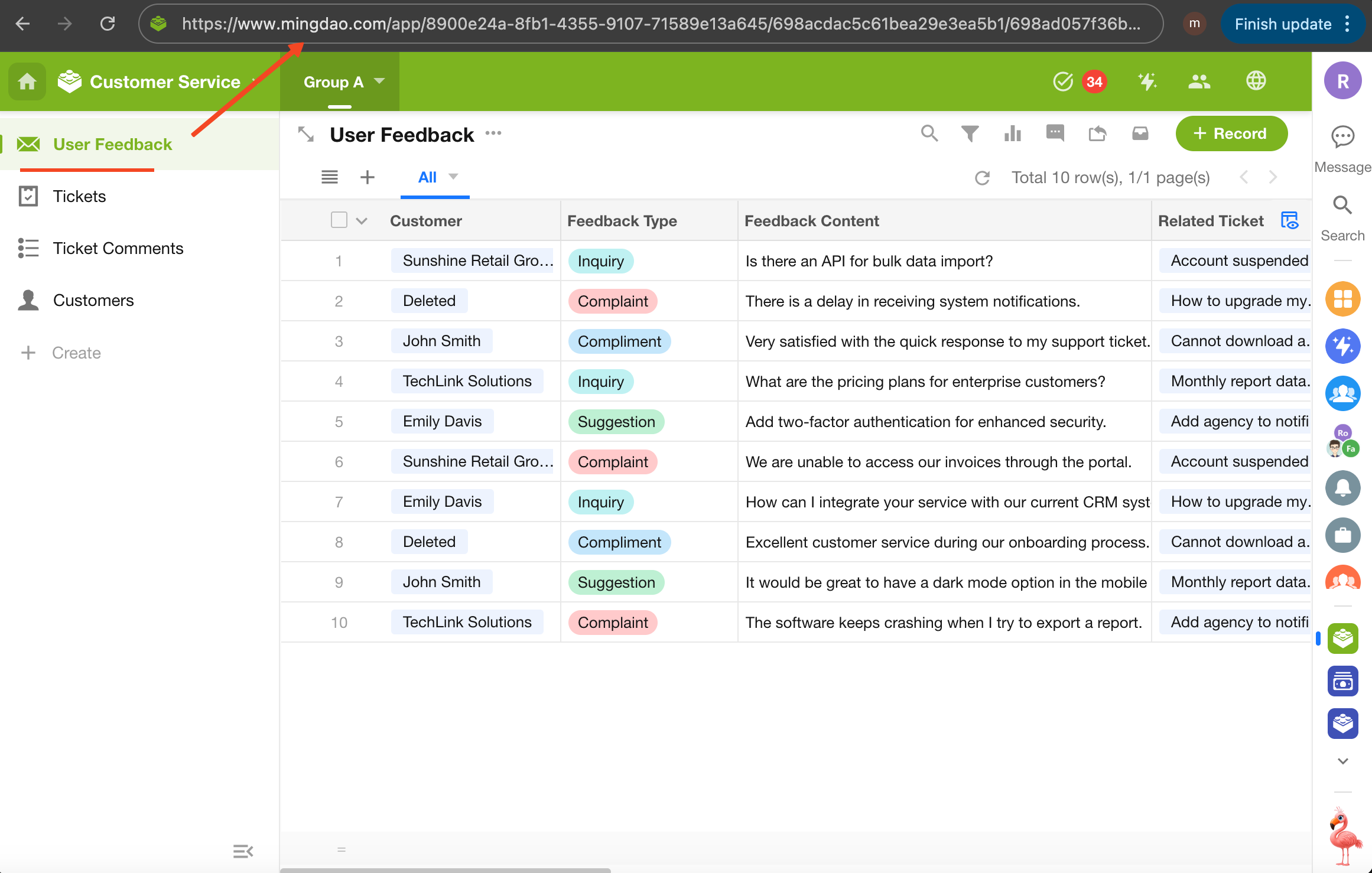

Open the page in a PC browser. The URL in the address bar is the page URL.

2.2 Append URL Parameters

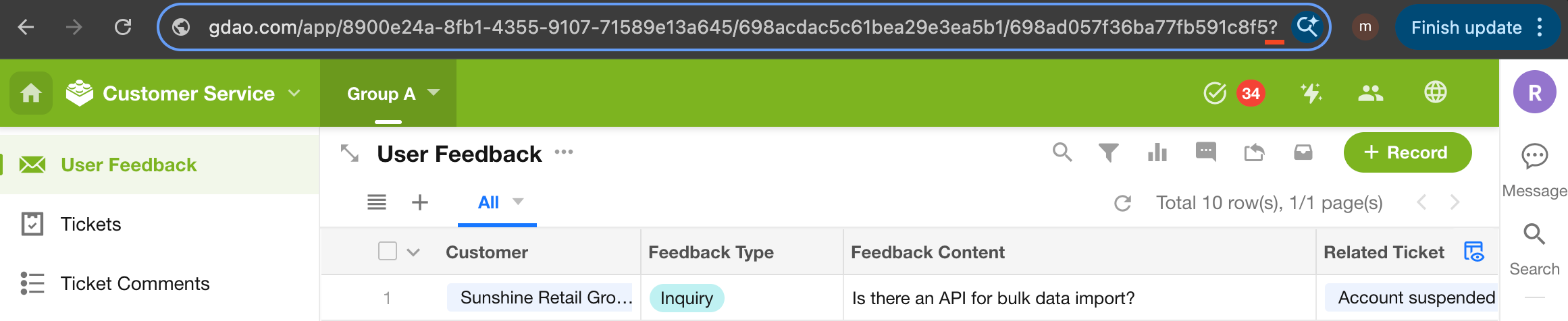

• 1) Add a question mark (?) to the URL

  The question mark indicates the start of custom parameters. A URL can only contain one ?. If one already exists, proceed to step 3.



• 2) Hide one UI area

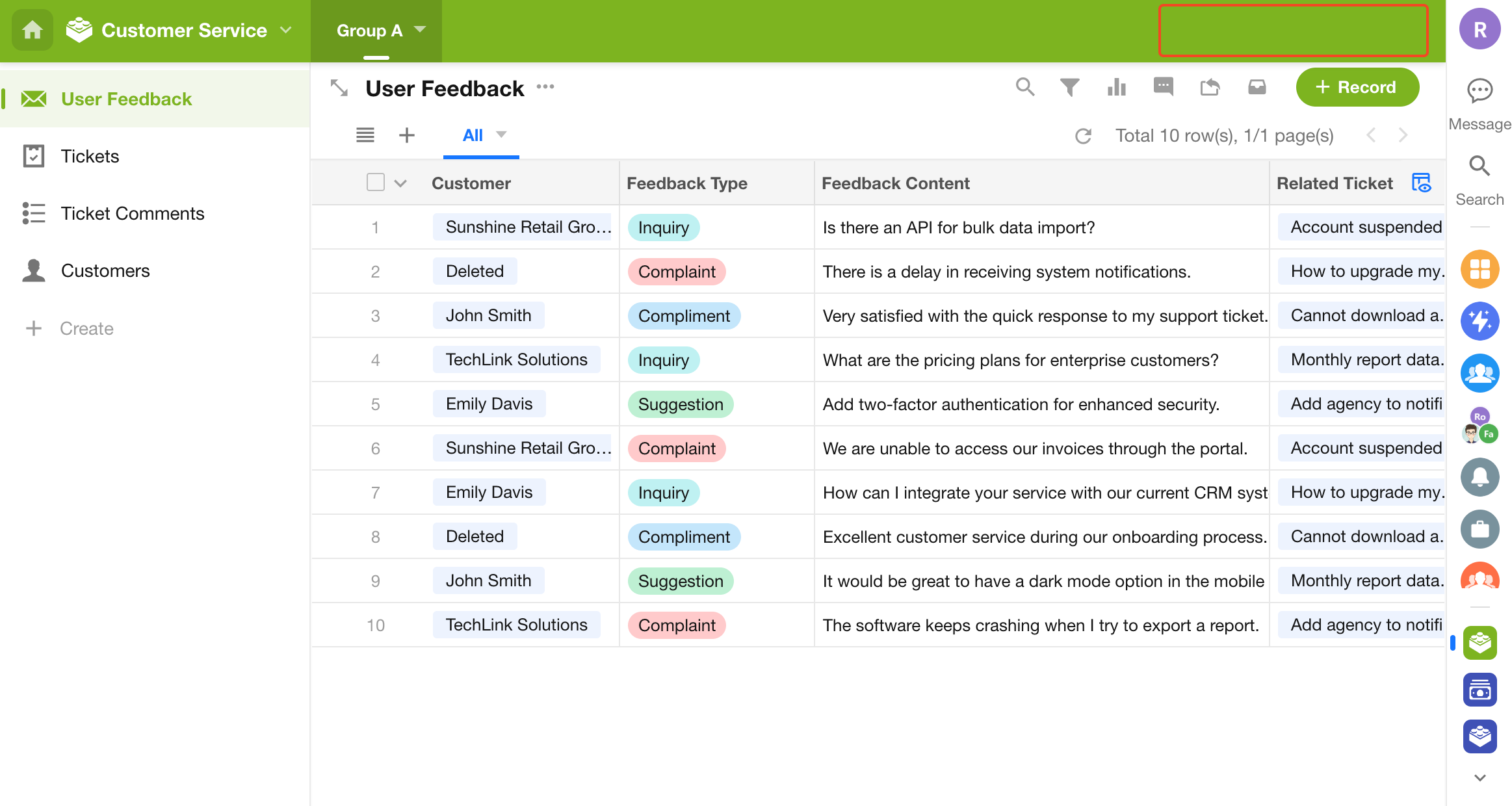

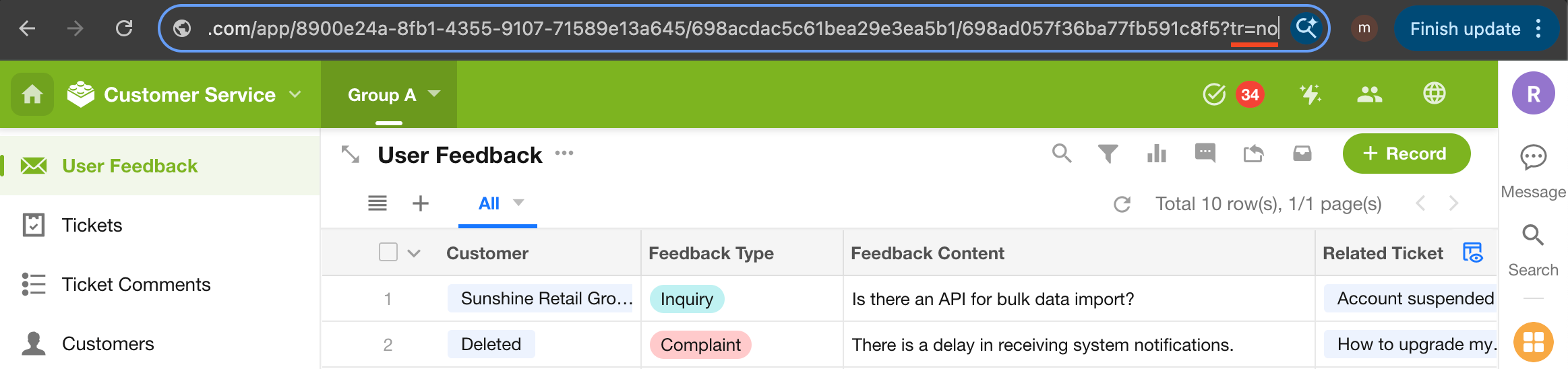

  After the ?, enter the parameter and value using =. For example, to hide the top-right action buttons:



  Press Enter to test. The chat panel will be hidden.



• 3) Hide additional areas

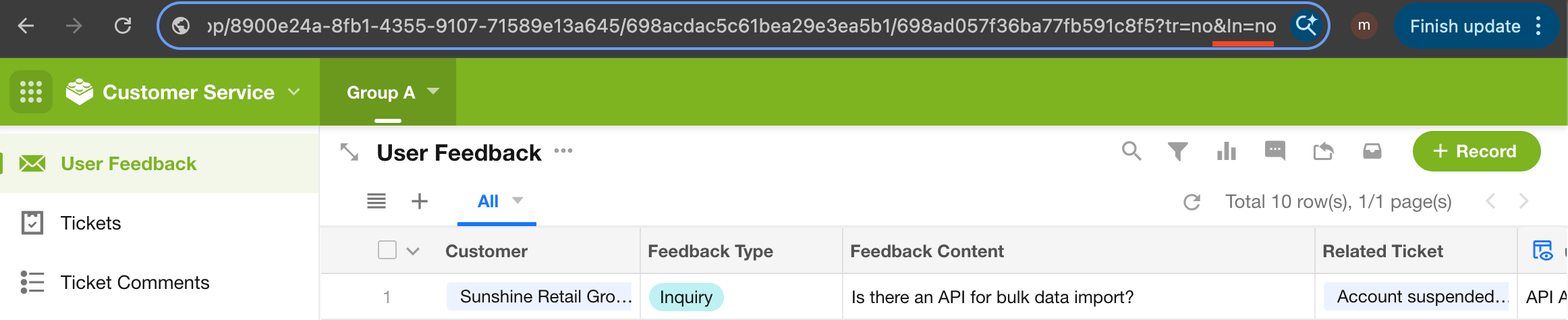

  Use & to append more parameters. For example, to also hide the left navigation:



  Press Enter to test. The left navigation will also be hidden.

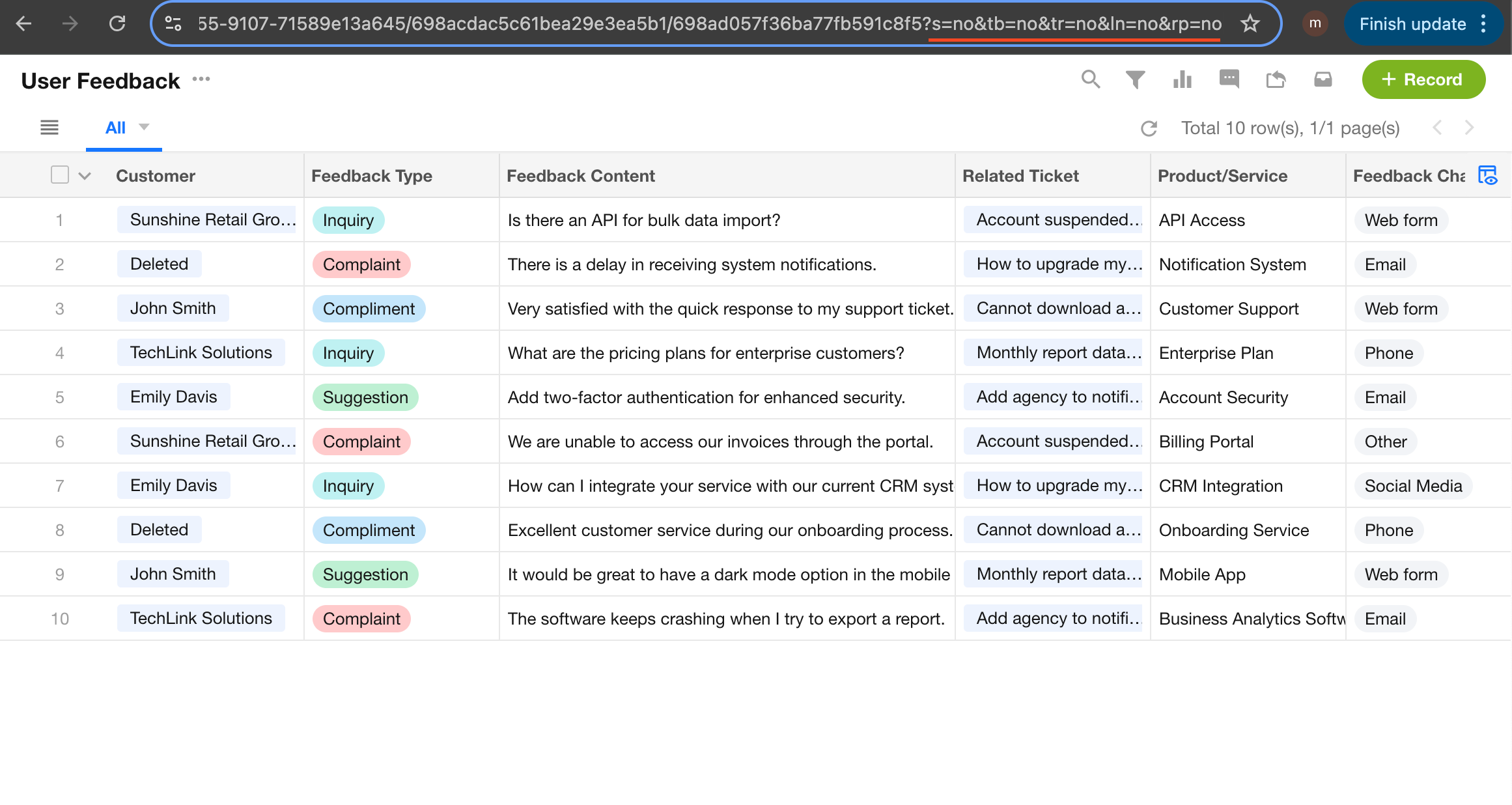

  Example: Hide five UI areas at once:

  ?s=no&tb=no&tr=no&ln=no&rp=no

2.3 Embed the URL in an iframe

Insert the configured URL into an iframe in the external system.

This feature works reliably when used within an iframe. In other scenarios, URL parameters may be modified during navigation, causing the configuration to fail.

2.4 Notes

• Parameter names and values must be lowercase
• The order of parameters does not matter
• Only when the value is set to no will the corresponding UI area be hidden; otherwise, it will remain visible
